Hardware Kit

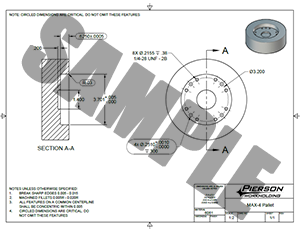

Build your own pallets using the included PDF and STEP design files. Available from the online store.

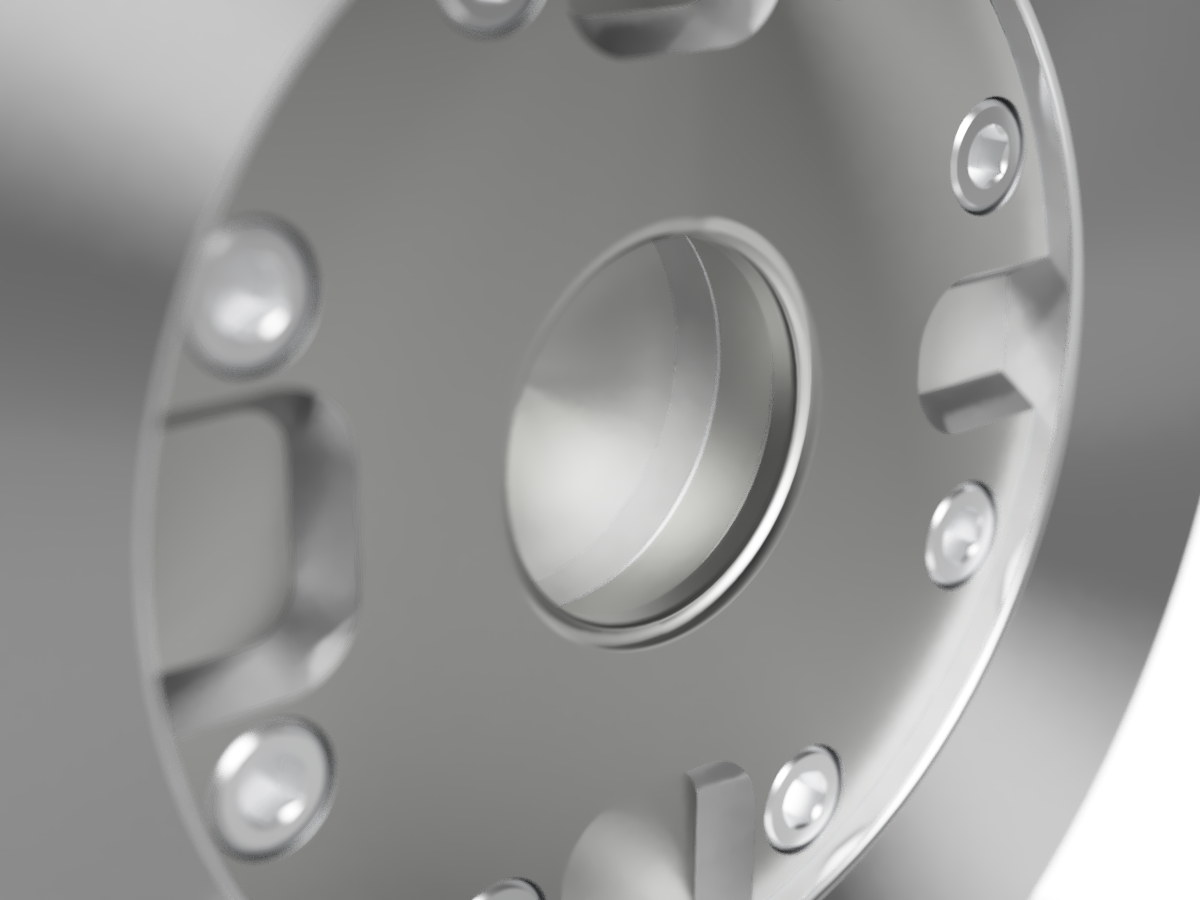

The MAX-4 Pallet System
Bring the productivity of high-density palletized workholding to your 4 and 5 axis applications. The MAX-4 (Multi-AXis) Pallet system allows for more parts per cycle, fewer tool changes, and maximum productivity. The fail-safe design is unlocked using compressed air and the locking action is spring powered with over 15,000 lbs of retention force.
Base Specifications
| Repeatability | 0.0002" |
|---|---|
| Retention Force | 15,000+ lbs |
| Design | Fail-safe — spring powered lock, air actuated release |
| Contact Pads | Hardened stainless steel |
- 0.0002" repeatability via self-centering quad taper design
- Hardened stainless contact pads
- 15,000 lbs of retention force — fail-safe system
- Wide mounting flange for versatile bolt interfaces
Pallet Sizes
| Size | Weight (Imperial) | Weight (Metric) |
|---|---|---|
| 2″ H × 5.9″ Dia | 5.9 lbs | 2.7 kg (51mm × 150mm) |
| 6″ H × 5.9″ Dia | 16.6 lbs | 7.5 kg (152mm × 150mm) |
- 6061 T6 Aluminum construction
- Hardened stainless steel locking insert
Starter Package
Includes 1 MAX-4 Base, 1 Connection Kit, and 4 Pallets (size choice).
Accessories
Rotary Union
- 28 inHg vacuum to 150 psi compressed air capability
- Maximum 100 RPM (600 deg/sec)
Connection Kit
- Hand valve, air lines, and all necessary fittings
- Same as PPS Connection Kit
See the MAX-4 in Action
Rotary Fixture Workholding
Frequently Asked Questions
What's the difference between the MAX-4 and the RotoVise Pro?
The MAX-4 is a pallet-based system — pallets lock into a base, giving you repeatable, swappable workholding. The RotoVise Pro is a vise that mounts to your rotary table. The MAX-4 is better for high-volume production where you pre-load multiple pallets; the RotoVise Pro is better for versatile vise-style clamping.
How accurate is the system?
The MAX-4 achieves 0.0002" repeatability via its self-centering quad taper design. This means pallets locate to the same position every time with no indicating required.
How rigid is the system?
The spring-powered ball lock delivers over 15,000 lbs of retention force. The fail-safe design means power loss does not release the pallet — it stays locked.
Is there a hardware kit to make my own pallets?
Yes. The hardware kit includes all locking and locating components plus PDF and STEP design files so you can machine your own pallets to any size or shape you need.
How can I purchase?
Order online at store.piersonworkholding.com, call us at (800) 352-2894, or email sales@piersonworkholding.com.
