Connection Kit (MPS-Connection) — $95.00
- Hand valve with mounting bracket
- 20′ air lines with fittings

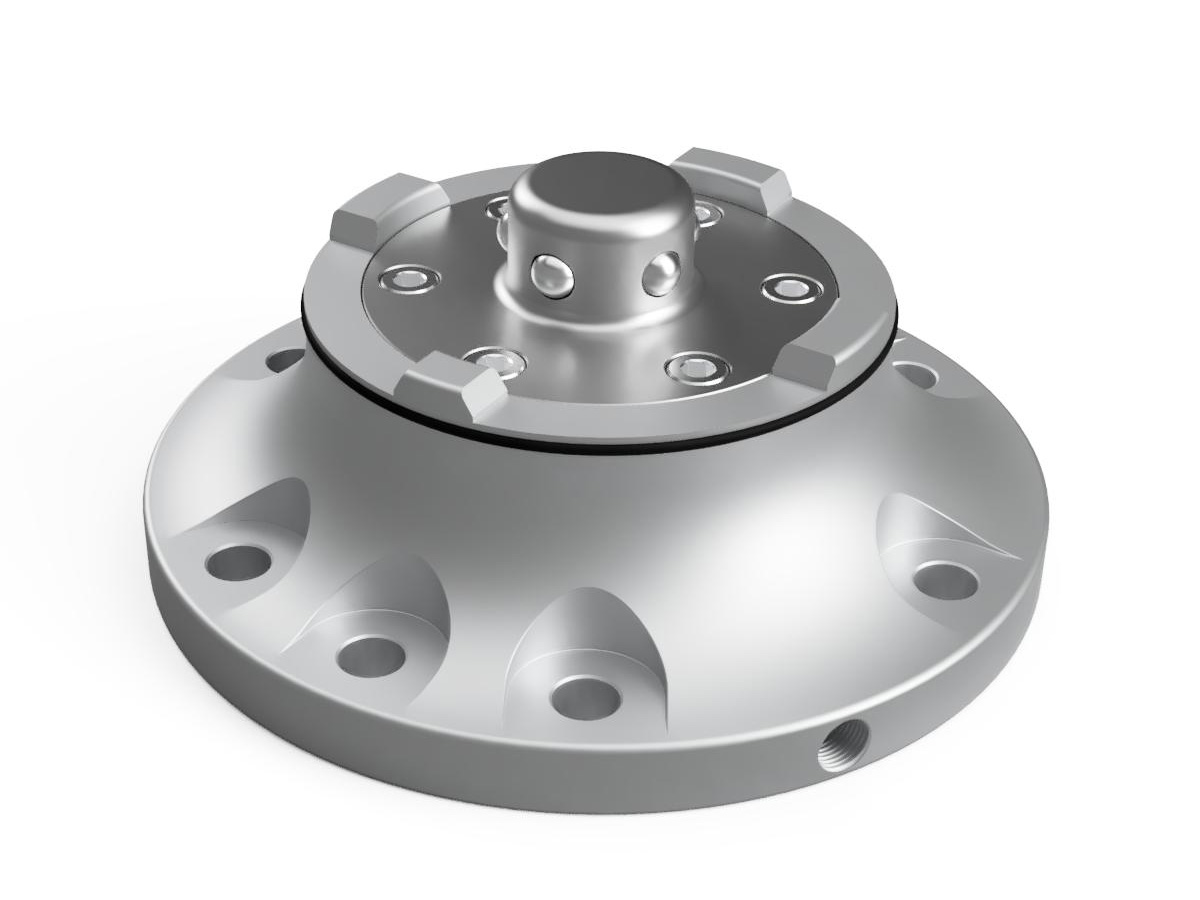

The Mini Pallet System
The Mini Pallet System (MPS) is designed for smaller machines where less aggressive machining and tighter work envelopes are the norm. Same repeatable palletized workholding in a compact package — and it's compatible with Saunders Machine Works Fixture Plates.
Base Specifications
| Price | $1,495.00 |
|---|---|
| Locking Force | 1,500 lbs downward |
| Repeatability | ±0.0003" |
| Mechanism | Air actuated release, spring-powered lock |
| Body | Hard-anodized aluminum |
| Hardware | Hardened stainless components |
- 0.0003" repeatability via precision ground locating pins
- Hardened stainless contact pads
- 1,500 lbs downward locking force
- Air actuated release, spring powered lock
- Hard anodized aluminum body
- Compatible with Saunders Machine Works Fixture Plates
Pallet Sizes
| Size | Weight |
|---|---|
| 6″ × 10″ × 1.25″ | 7.5 lbs |
| 8″ × 14″ × 1.25″ | 14.0 lbs |
- 6061-T6 Aluminum
- Two size options
- Hardened stainless steel locking inserts
- Hardened, ground tool steel bushings
Starter Package — $1,775.00
Includes: 1 MPS Base, 1 pallet (size of your choice), connection kit, and 4-pack of clamps and bolts.
Accessories
Vacuum Pallet Kit (MPS-VPK) — $1,295.00
- Includes: 9.5″ × 14″ vacuum chuck, vacuum power unit, connection kit, 25′ vacuum gasket
Vacuum Top Plate (SV2-Top-914) — $115.00
- Ground flat within 0.002"
- 18 RMS surface finish
- 0.001" repeatability
Mini Pallet System Videos
Should you get the Pro or the Mini?
NYC CNC: Making the MPS part 1
NYC CNC: Making the MPS part 2
John Grimsmo unboxes his MPS
Mind Blowing Customer Pallet
Pallet System Q&A
Pro vs Mini: What's right for you?
Frequently Asked Questions
What's the biggest difference between the Mini and the Pro Pallet?
The Mini Pallet System is sized for smaller machines with tighter work envelopes. Locking force is 1,500 lbs vs 3,000 lbs on the Pro, and pallet sizes are smaller. For machines with a work envelope under 18×18" and lighter cutting loads, the Mini is often the right choice.
What is the accuracy?
The MPS achieves ±0.0003" repeatability via precision ground locating pins and hardened bushings. Pallets locate consistently every time without indicating.
How rigid is the system?
The spring-powered locking mechanism delivers 1,500 lbs of downward locking force. For less aggressive machining typical of smaller machines this is more than adequate.
Is there a hardware kit available to make custom pallets?
Yes — contact us. The MPS uses a standard locating and locking interface that you can replicate in custom pallet designs using our provided drawings.
