Jaw Options
- Pallets: 7075-T6 Aluminum
- Soft Jaws: 6061-T6 Aluminum
- Steel Jaws: 1018 steel
- Serrated Jaws: 4140 hardened ~45C Rockwell

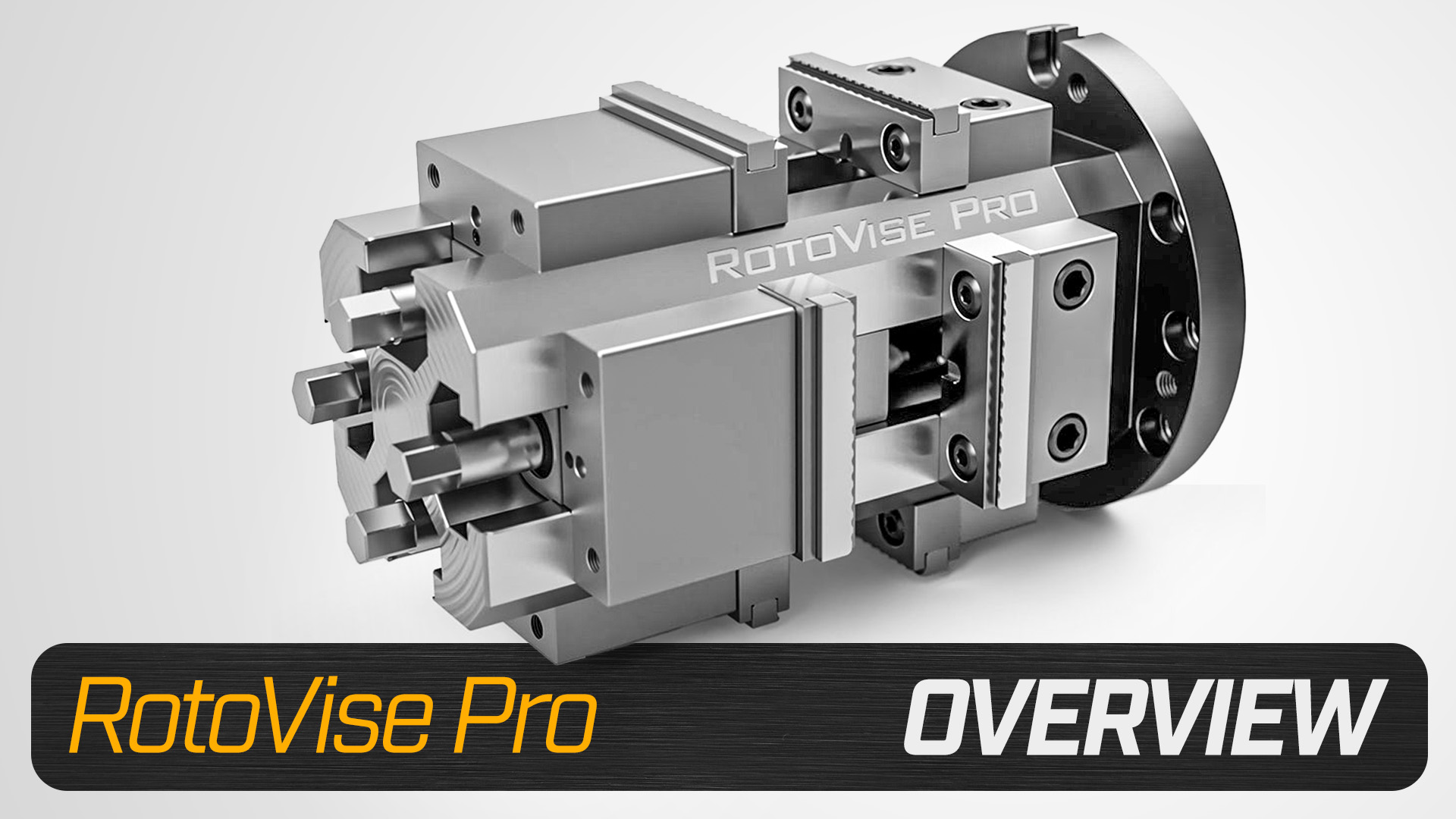

The RotoVise Pro

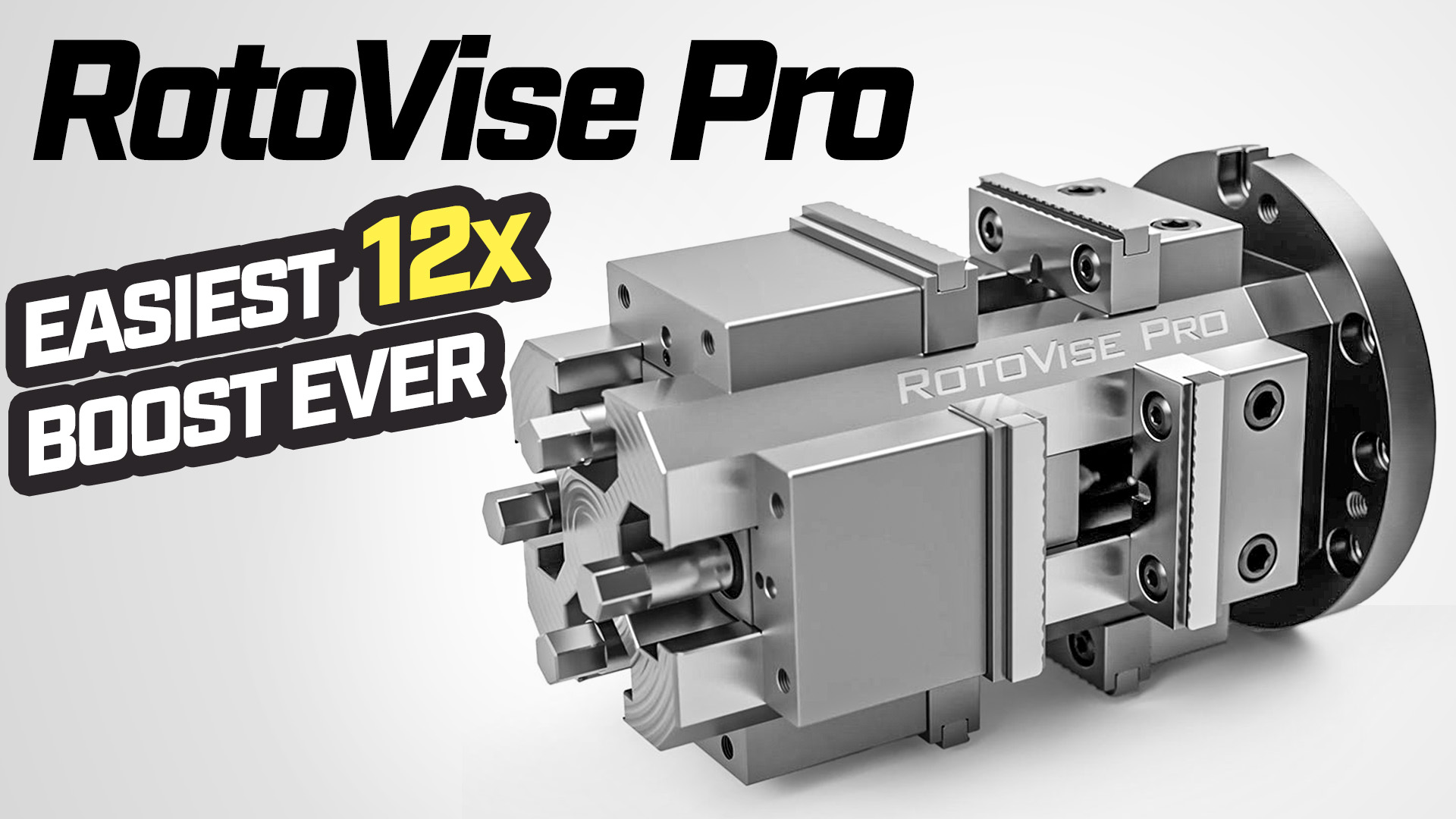

The RotoVise Pro adds an incredible production boost to 4th axis machining. A simple and affordable way to get 12x production gains over traditional vise workholding. It bolts to common rotary tables and the compact design does NOT require a cumbersome tailstock due to its rugged construction and parts held close to the face of the rotary unit.
- Ductile cast iron body for maximum dampening, rigidity, and long life
- Sealed lead screws create smooth action and eliminate chip jamming
- Hardened steel jaws feature serrated, step, and flat sides
- Adapter plate bolts to 4 and 6 t-slot patterns and 96mm receiver standards
Specifications
| Weight | 45.4 lbs (20.6 kg) |
|---|---|
| Clamping Force per Jaw | 5,000 lbs |
| Lead Screw | 16 TPI |
| Max Clamp Torque | 45 foot lbs |
| Includes | Vise Handle, Serrated Jaws, Guide Pin |
Accessories

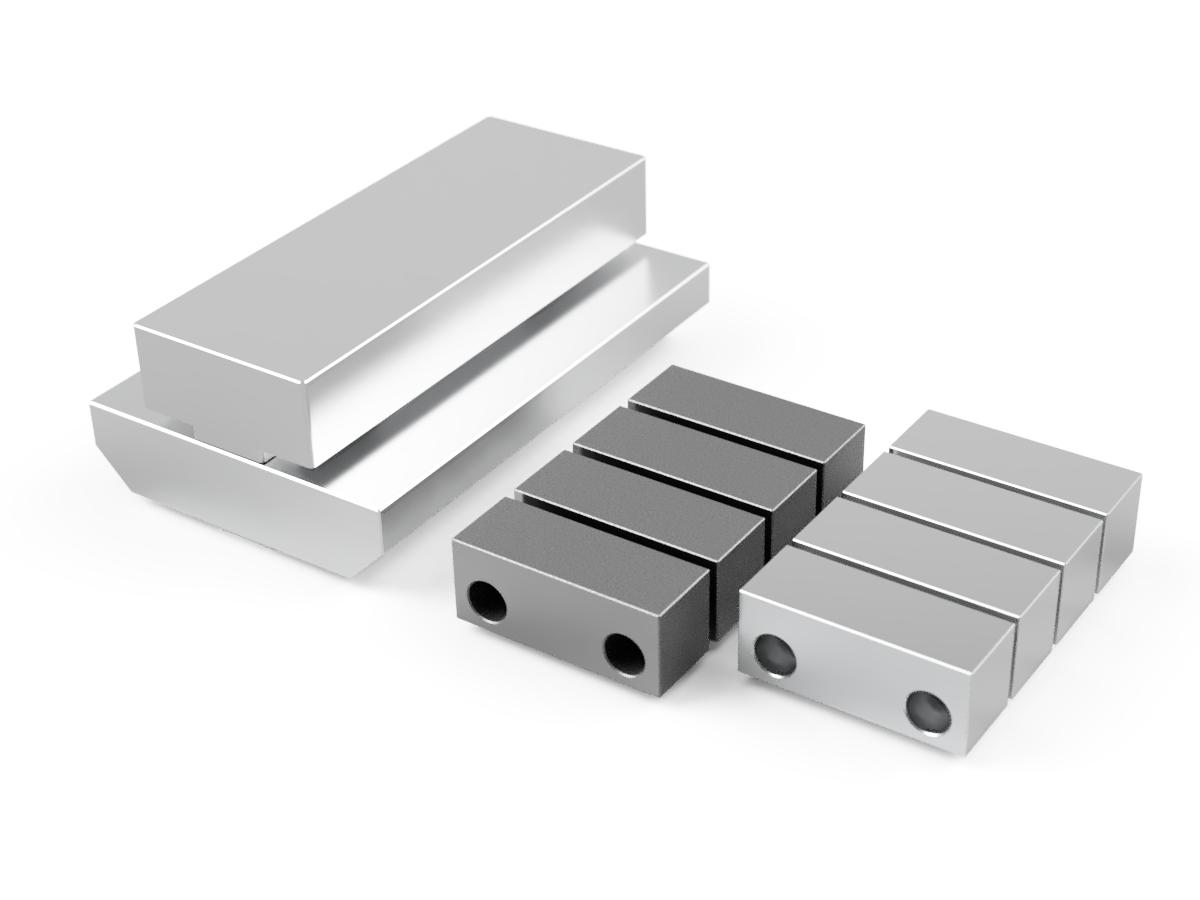

SmartPlate – Rotary Riser
- Optimizes travels with two positions
- Right-hand: maximize X travel
- Left-hand: 1.900" extra rotational clearance
- Compatible T-slot center distances: 3.15", 3.93", 4.92" (80mm, 100mm, 125mm)
- 25% off with RotoVise Pro purchase
Guide Pins
- Available for bore sizes 1.5" to 3.25" and 40mm to 65mm
- 0.003" smaller than common bores for easy installation
- Custom sizes: 3-5 day lead time
RotoVise Pro Videos
You got the machine, now maximize your output! Overview
Watch this video to setup your RotoVise Pro right
Maximize your RotoVise Pro potential
Improving old process for 100% finished parts overnight
Machine all 6 sides of dice in one setup
Using the RotoVise Pro with Pallets
NYC CNC: RotoVise Oversize Aggressive Machining
The SmartPlate is the perfect rotary unit accessory
Frequently Asked Questions
Do I need a tailstock?
No. The RotoVise Pro's rugged construction holds parts close to the face of the rotary unit, eliminating the need for a tailstock in most applications. This keeps your X and Y travels fully available.
What materials can I machine?
The RotoVise Pro handles aluminum, steel, stainless, titanium, and most other machinable materials. The hardened steel jaws and ductile cast iron body provide excellent rigidity for aggressive cuts.
What types of rotary tables can it adapt to?
The adapter plate is compatible with 4 and 6 t-slot patterns and 96mm receiver standards. Custom adapter plates can be made for other configurations.
What is the clamping force?
5,000 lbs per jaw. With two jaws engaged, you have 10,000 lbs total clamping force — more than adequate for aggressive 4th axis machining.
How tight should I clamp?
Clamp to the manufacturer's specified torque of 45 foot-lbs maximum. Over-clamping can damage the lead screw and jaws.
Where can I purchase?
Order at store.piersonworkholding.com or call (800) 352-2894, Mon–Fri 6:30am–3:30pm PST.
Downloads
RotoVise Flyer (PDF)
RotoVise Quickstart Guide (PDF)
RotoVise Pro STEP Model — Available after purchase
